HERL
Regulating Valves

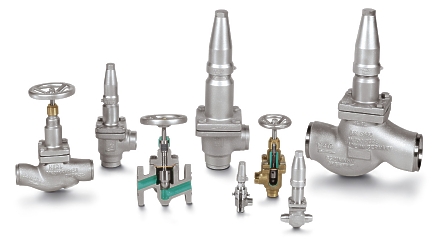

Manual Regulating Valves:

• materials and design same as shut-off valves

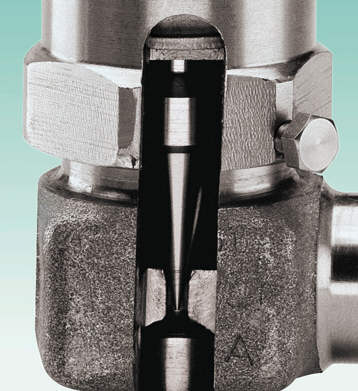

• fine regulating valves DN 15, seat-diameter 3, 5 and  7 mm
• our valve-calculation program shows the calculated,  the minimal and the maximum opening-degree

• Fine regulating valves DN15, seat-diameter 3, 5 and 7 mm - globe- and angle-valves - steel and stainless steel.
• Regulating valves steel on steel tightening or on request with lead-tin or PTFE-sealing.

Available Connections:

Butt Weld Connection	Socket Weld Connection
FPT- threaded ends	Flanges DIN and ANSI

Click Here for more information on Manual Regulating Valves

___________________________________________________

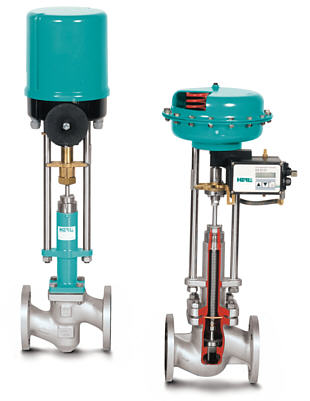

Regulating Valves with Electric & Pneumatic Actuator

For use as:

• Expansion valve for constant regulation to prevent compressors and pumps from  damage.
• Suction pressure regulating valves - low pressure drop saves energy.
• Evaporator injection valve
• Hot gas bypass valves

For use with:

• Pressure, temperature and level sensors
• Electronic regulators and positioners
• Back signal modules
• Limit switches
• Stem-heating

• HERL will calculate kvs-value, seat-diameter and cone-design from your operation data.

Available Connections:

Flanges DIN and ANSI

Click Here for more information on Regulating Valves
